KEY TAKEAWAYS
- Standard flatbed trailers run 48-53 ft long, 8.5ft wide, with a 60-inch deck height and 48,000 lbs cargo capacity.
- There are 5 flatbed trailer types: standard flatbed, step deck, RGN/double drop, stretch flatbed, and hotshot, each suited to different cargo and route types.
- Any load exceeding 8’6” wide, 13.5 ft total height, or 80,000 lbs GVW requires an oversize or overweight permit before moving on US highways.
- Cargo securement is the 2026 CVSA roadcheck enforcement focus. Flatbed trucks account for the majority of cargo securement violations at roadside inspection.
- Flatbed drivers earn 15-25% more per mile than dry van drivers, reflecting the physical demands and cargo securement skills the work requires.

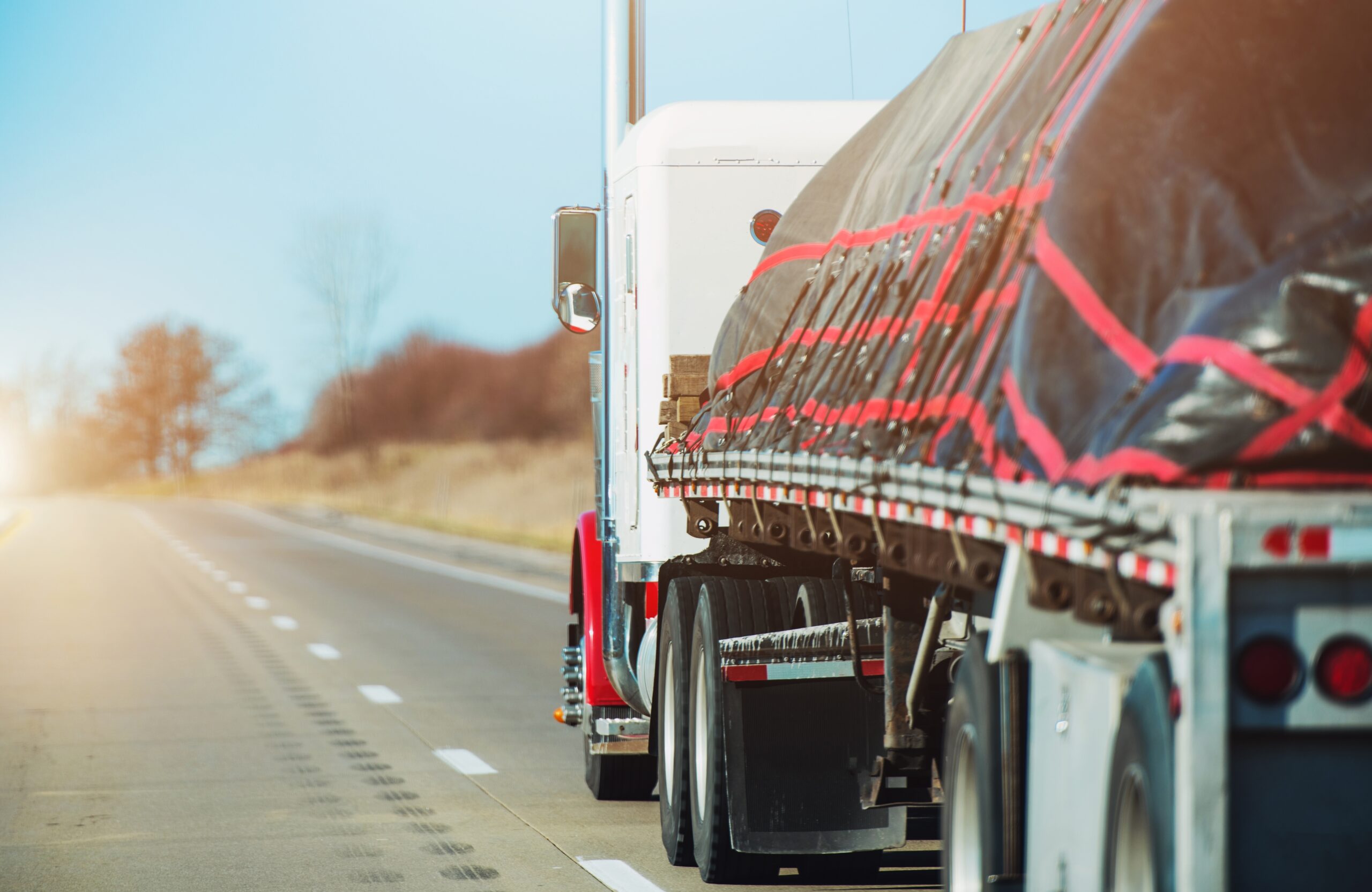

A flatbed truck is an open-deck commercial vehicle with no walls, no roof, and no enclosure. Cargo sits directly on the trailer bed and is secured with chains, straps, and tarps. The standard flatbed trailer runs 48–53 ft long, 8.5 ft wide, with a 60-inch deck height and cargo capacity up to 48,000 lbs. Federal gross vehicle weight is capped at 80,000 lbs GVW under 23 USC § 127 for vehicles operating on the US interstate system.
The design trades weather protection for access and capacity. Dry vans protect cargo from the elements but restrict what you can carry to whatever fits through the rear doors. Flatbeds carry oversized, irregularly shaped, and heavy industrial freight that cannot fit in an enclosed trailer: structural steel, lumber packs, excavators, wind turbine components, and pre-cast concrete panels, the loads that keep construction sites, manufacturing plants, and energy infrastructure running. Flatbed drivers also earn 15–25% more per mile than their dry van counterparts, reflecting the specialized securement skills and physical demands of the work.
This blog covers the five types of flatbed trailers, their dimensions and payload limits, the federal permit thresholds fleet managers and dispatchers reference most, FMCSA cargo securement requirements, and why flatbed fleets put specific demands on vehicle health monitoring systems.
What is a flatbed truck, and how is it different from other trailer types?
The defining feature of a flatbed is the open design: no walls, no roof. Cargo can be loaded from any direction, crane from directly above with no roof obstruction, forklift from either side with no wall clearance issues, or via ramps from the rear. That flexibility is the primary reason flatbed exists as a trailer type.
The trade-off is weather exposure. Unlike dry van freight, flatbed cargo is exposed to rain, wind, and road debris the entire trip. Drivers must tarp loads when required, a process that adds 30–60 minutes per load and demands physical labor before and after each run. Cargo securement requirements are also more rigorous since there are no walls or doors to keep freight in place.
The operating logic is straightforward: if your cargo fits inside a dry van, use a dry van. If it does not, because it is too wide, too tall, too long, or needs to be loaded from the side or above, the flatbed is the right tool. The industries that depend most on flatbed include construction, manufacturing, energy (wind, oil, and gas), agriculture, steel and metal distribution, and heavy equipment transport.
5 types of flatbed trailers: Which one does your fleet need?
1. Standard flatbed trailer
The standard flatbed is the most common trailer in the category. At 48–53 ft long, 8.5 ft wide, with a deck height of approximately 60 inches from the road surface, it is the workhorse of open-deck freight. Cargo capacity is 48,000 lbs. The 53-ft version holds roughly 26 standard pallets when cargo dimensions and the loading pattern allow.
Best for: steel coils, lumber, building materials, large machinery, and palletized goods that require side or overhead loading. When not to use it: cargo taller than 8.5 ft. Add standard deck height to a tall load, and total height can push past the 13.5 ft threshold before you factor in the trailer at all.
Related article: Curb Weight vs Gross Weight vs GVWR: What Fleet Managers Should Know
2. Step deck trailer (Drop deck)
The step deck has two deck levels: a shorter upper deck over the tractor axles and a longer lower deck behind the tractor. The lower deck sits closer to the ground, typically 36–42 inches from the road surface, compared to 60 inches on a standard flatbed. That extra clearance lets you run taller cargo without triggering a height permit.
Total trailer length runs 48–53 ft, with the upper deck covering roughly 11 ft and the lower deck spanning 37–41 ft. Payload capacity is approximately 44,000 lbs. Best for: tall construction equipment, large machinery, and cargo between 8.5 and 10 ft tall. When not to use it: very long single-piece loads that cannot accommodate the step transition between deck levels.
3. RGN trailer (Removeable gooseneck/Double drop/Lowboy)
The RGN has the lowest deck height of any standard flatbed type, typically 18–24 inches from the ground. The gooseneck section physically detaches, allowing heavy equipment, bulldozers, excavators, and military vehicles to drive directly onto the deck from the front without a ramp.
The two-drop deck design (a drop at the front, a rise at the rear) is what makes the ultra-low center section possible. Payload capacity runs approximately 38,000 lbs, less than a standard flatbed because the heavier trailer structure absorbs some of the legal GVW budget. Best for: tall heavy equipment that exceeds step deck clearance, oversized construction equipment, and large industrial machinery. Oversized permits are almost always required for RGN loads.
4. Stretch flatbed trailer
The stretch flatbed is a standard flatbed that hydraulically extends beyond 53 ft to carry single-piece cargo too long for a standard trailer. Extended lengths typically run 65–80 ft, though some configurations go longer for specialized applications such as aerospace components.
Any length beyond 53 ft requires state-level oversize permits, and stretch flatbed loads almost always require pilot cars and escort vehicles in addition to routing permits filed state by state. Best for: wind turbine blades, bridge beams, long steel pipe sections, and similar long industrial loads. Payload varies with the extension configuration.
5. Hotshot flatbed
Hotshot trucking uses a Class 3–5 pickup truck (typically a Ford F-350 to F-550 or equivalent) pulling a gooseneck or bumper-pull flatbed trailer. Some configurations fall below the 26,001 lb GVWR threshold that triggers CDL requirements, though this varies by state and load type.
Trailer lengths run 20–40 ft. Payload capacity tops out at roughly 15,000–16,500 lbs. Best for: time-sensitive, smaller loads, oil field equipment, small machinery, and regional freight that does not fill a full 53-ft trailer. Hotshot operators work under tighter weight constraints and face disproportionately high inspection rates, particularly in oil and gas corridors.
Flatbed trailer types: Comparison table
A daily reference for dispatchers and fleet managers matching cargo to trailer type.
| Trailer type | Max length | Deck height | Cargo capacity | Best for | Permit likely? |
| Standard flatbed | 48-53 ft | ~60 in | 48,000 lbs | Steel, lumber, machinery, pallets | Only if oversize |
| Step deck | 48-53 ft | 36-42 in (lower) | 44,000 lbs | Tall equipment (8.5-10 ft) | Sometimes |
| RGN/Lowboy | Variable | 18-24 in | 38,000 lbs | Very tall/heavy equipment | Almost always |
| Stretch Flatbed | 65-80 ft+ | ~60 in | Varies by configuration | Turbine blades, long beams | Always |
| Hotshot | 20-240 ft | Variable | 15,000-16,500 lbs | Regional loads, oil field freight | Sometimes |
US flatbed dimensions and weight limits: The legal thresholds
Federal law sets four-dimensional thresholds that determine when an oversize or overweight permit is required. Fleet managers and dispatchers reference these daily for route planning and load approval.
- Width: The federal maximum is 102 inches (8’6″) without an oversize permit. Over 12 ft wide, most states require at least one escort or pilot car. Over 14 ft wide, two escort vehicles are typically required.
- Height: The maximum total height, measured from the road surface to the top of the cargo, is 13.5 ft in most US states before an oversize permit is required. Some western states allow up to 14 ft. For oversize routing, bridge clearances on the entire route must exceed the total loaded height, which is why permit routing software checks bridge heights automatically.
- Length: The standard legal maximum for a trailer alone is 53 ft. Anything beyond that moves into stretch flatbed territory and requires state oversize permits. Overall combination length limits (tractor plus trailer) vary by state, typically running 65–75 ft.
- Weight: The federal gross weight maximum is 80,000 lbs GVW for the full vehicle combination under 23 USC § 127. Single axle limits are capped at 20,000 lbs, and tandem axle limits are capped at 34,000 lbs. Loads that exceed these limits require an overweight permit from each state the route passes through, with permit costs typically ranging from $15 to $200+ per state.
California, Texas, and Florida all maintain state-specific rules that can differ from federal minimums. Always run a permit check before routing any oversize load. For fleet weight classification and GVW context, the GVWR fleet guide covers payload thresholds in detail.
Cargo securement requirements fleet safety directors need to know
FMCSA 49 CFR Part 393.100–393.136 governs cargo securement for all commercial motor vehicles, including flatbeds. The regulation specifies securement methods by cargo type: steel coils require chains and binders, lumber requires straps, and heavy machinery requires chains plus blocking and bracing. There is no one-size-fits-all setup for a flatbed.
The working load limit of all securement devices combined must equal at least 50% of the total cargo weight. Minimum tiedown counts are determined by cargo length, and loose materials like gravel or sand require tarping in addition to physical securement.
The compliance context matters right now. Cargo securement is the 2026 CVSA International Roadcheck vehicle focus area. According to CVSA, 18,108 violations were issued in 2025 because cargo was not secured to prevent leaking, spilling, blowing, or falling, and a further 16,054 violations were issued for unsecured vehicle components or dunnage. Flatbed trucks account for the majority of these citations because their open-deck design requires active physical securement that enclosed trailers do not need.
A Level 1 DOT inspection on a flatbed runs through every chain, strap, binder, and tarp for proper condition and correct WLL ratings. A single defective tie-down can put the vehicle out of service on the spot.
Why flatbed fleets need telematics: Load stress and vehicle health monitoring
Flatbed operations put variable, unpredictable stress on the vehicle in a way that enclosed trailer work typically does not. A flatbed carrying steel coils distributes weight differently than one carrying lumber. Each load configuration puts different pressure on the front and rear axles, tires, and suspension, stress that accumulates across runs and accelerates mechanical wear over time.
This matters for four specific systems. Tire pressure anomalies that develop under heavy or unevenly distributed loads show up in TPMS data before they become blowouts. Brake system health degrades faster on flatbeds running repeated heavy-load stops, and that wear pattern appears in vehicle data before physical failure. Suspension stress from chronic overloading produces OBD signals that indicate chassis fatigue. And fuel consumption takes a hit with every pound added. Overloaded flatbeds can burn 8 to 12% more fuel per mile than the same vehicle running at standard load, and even routine extra weight adds up: the U.S. Department of Energy notes that every 100 lbs of added weight can lower fuel economy by roughly 1%, with the effect compounding as overload increases.
Overloading rarely announces itself. A driver loads the truck and gets on the highway. Nothing on the dashboard says the vehicle is running above GVWR. Nothing flags that the brake system is now working harder than it was rated for, or that tires are deforming under load on a route the vehicle has done a hundred times before.
The damage compounds quietly. By the time it surfaces as a brake job, a tire failure, or a DOT out-of-service order, the vehicle has already logged thousands of miles in that condition. Standard fleet management workflows have no mechanism for catching this in real time.
What does show up is in the OBD-II data: brake pressure trending outside the normal range for that vehicle class, TPMS readings dropping below baseline, transmission temperatures tracking above expectation for the route. These are the early indicators of a load problem. They appear well before the weigh station ticket or the repair invoice.
Intangles monitors all of these parameters across 250+ vehicle data points in real time, feeding them into a predictive maintenance model that catches early-stage load stress signals before they escalate to a breakdown or a DOT out-of-service order.
Discover how Intangles’ predictive vehicle health monitoring detects overloading patterns across your flatbed fleet before they become breakdowns, DOT violations, or liability claims or talk to our team.
KNOW MORE
Frequently Asked Questions
What is a flatbed truck, and what is it used for?
A flatbed truck is an open-deck commercial vehicle with no walls or roof, used to carry cargo that is too large, too heavy, or too irregularly shaped to fit inside an enclosed trailer. Common applications include steel and metal distribution, construction materials, heavy equipment transport, lumber, and energy industry components such as pipe sections and wind turbine parts. Fleets running flatbed operations can explore Intangles fleet monitoring for compliance and breakdown prevention.
What are the standard dimensions of a flatbed trailer?
A standard flatbed trailer runs 48–53 ft in length, 8.5 ft wide, with a deck height of approximately 60 inches from the road surface. Cargo capacity is up to 48,000 lbs. The 53-ft version holds approximately 26 standard pallets under normal loading conditions.
When does a flatbed load require an oversize permit in the US?
A flatbed load requires an oversize permit when it exceeds any of the following federal thresholds: width over 102 inches (8’6″), total height over 13.5 ft, trailer length over 53 ft, or total combination weight over 80,000 lbs GVW. Some states have lower thresholds or additional rules, so always verify permit requirements state by state before routing. For fleet weight classification and GVW management, the GVWR guide for fleet managers is a useful reference.
What is the difference between a flatbed and a step deck trailer?
A standard flatbed has a single-level deck at roughly 60 inches from the ground. A step deck has two levels: an upper deck over the tractor axles (approximately 11 ft long) and a lower deck behind the tractor (approximately 37–41 ft long) that sits 36–42 inches from the ground. The lower deck allows cargo between 8.5 and 10 ft tall to move on the highway without triggering a height permit; the same load would require a permit on a standard flatbed.
What are the cargo securement requirements for flatbed trucks?
FMCSA 49 CFR Part 393 sets the federal cargo securement standard. Securing devices must have a combined working load limit equal to at least 50% of the cargo weight. Minimum tiedown counts are based on cargo length, and specific methods apply per cargo type, chains and binders for steel, straps for lumber, and chains plus blocking for machinery. Tarping is required for loose bulk materials. Flatbed fleets tracking vehicle wear alongside securement compliance use Intangles’ predictive health monitoring to connect both.
