KEY TAKEAWAYS
- An AC pressure switch protects the compressor by cutting power when refrigerant pressure is too high or too low.
- The five most common symptoms: no cooling, intermittent cooling, a constantly running radiator fan, compressor chattering, and a check engine light with DTCs P0530 through P0533.
- A failed switch costs $20-$100 to replace. Ignoring it can destroy the compressor, with replacement averaging $1,004-$1,356 on passenger vehicles and climbing higher on heavy-duty trucks.
- Telematics systems that monitor OBD-II data flag AC pressure switch fault codes before total compressor failure, keeping the repair at a part swap rather than a four-figure replacement.
Your AC compressor is a precision pump. It handles heat, pressure swings, and years of on-off cycling, but only when the refrigerant stays within a safe pressure range. Drop too low, and the compressor runs without proper lubrication. Climb too high, and hoses rupture, or refrigerant escapes under pressure into the engine bay. The AC pressure switch is the component that prevents both from happening.
Every vehicle has at least two of them. The low-side switch cuts power to the compressor when refrigerant pressure falls below the safe minimum. The high-side switch does the same when pressure climbs too far. When either one fails, it goes one of two ways: the compressor stops engaging entirely, or it cycles on and off erratically. The first is obvious. The second is harder to catch and tends to cause damage before anyone notices.
This blog covers what the switch does, how to recognise when it has failed, three methods to confirm the diagnosis, and what the stakes are specifically for commercial fleet operators.
What does an AC pressure switch do?
Refrigerant travels a closed loop through the AC system, from the compressor to the condenser, through the expansion valve to the evaporator, then back to the compressor. Two pressure switches sit at opposite ends of this loop, each watching a different side of the circuit.
The low-side switch sits on the suction line between the evaporator and the compressor. The high-side switch sits on the discharge line between the compressor and the condenser, typically near the receiver-drier or accumulator. Both wires are directly into the compressor clutch circuit. When pressure goes outside their rated thresholds, they open the circuit and shut the compressor off.
The protection logic on the low side works like this: when the refrigerant level drops, the low-side pressure drops with it. At roughly 25 PSI, the switch opens the circuit. A compressor running at low refrigerant is also running without the lubricating oil that the refrigerant carries through the system. That oil does not circulate independently. Without it, compressor bearings seize within minutes. On the high side, the concern is overpressure. If the condenser gets blocked, a cooling fan stops working, or the system is overcharged, high-side pressure climbs fast. Above roughly 400 PSI on most vehicles, the high-side switch opens the circuit before hose rupture or refrigerant releases. Both switches are accessible with basic hand tools on most platforms.
5 symptoms of a bad AC pressure switch
1. The AC compressor won’t engage
When a switch fails open, the circuit breaks permanently, and the compressor clutch receives no engagement signal. No compressor means no refrigerant circulation and no cooling, regardless of the AC setting. Before replacing the switch, verify the actual refrigerant pressure with a gauge set first. A low charge produces the same symptom and requires a recharge, not a new switch.
2. Intermittent or inconsistent cooling
A switch that is failing but not yet dead sends erratic signals. The clutch engages for a few minutes, drops out, then re-engages without warning. AC that works fine at 7 a.m. but stops cooling by midday is a recognisable pattern. The switch holds a reliable signal when the system is cold, but loses consistency as underhood temperatures rise. Each dropout puts the system through an unnecessary partial warm-up and cool-down cycle, adding wear beyond the switch itself.
3. Radiator fan running constantly
A high-side switch stuck in a triggered state sends a continuous high-pressure signal to the PCM. The PCM reads it as an overheating condition and activates the radiator and condenser fans to compensate. Those fans run even with a cold engine and no AC demand. On vehicles with electric cooling fans, the constant draw reduces fuel economy and can mask legitimate cooling system warnings that would otherwise get attention.
4. Compressor chattering or rapid clicking
When the switch sends inconsistent signals in quick succession, the compressor clutch engages and disengages in rapid cycles rather than holding a steady engagement. The result is an audible clicking or chattering near the compressor, distinct from normal clutch engagement. Each rapid cycle stresses the clutch plate and armature. Diagnose the switch the same day the noise appears.
5. Check engine light (DTC P0530 to P0533)
The ECM logs AC pressure fault codes the moment it detects a circuit anomaly. P0530 is a general AC refrigerant pressure sensor circuit malfunction. P0531 is a range or performance fault, meaning the sensor is responding but outside expected parameters. P0532 flags low voltage input corresponding to the low-side sensor reading below its expected range. P0533 flags high voltage input from the high-side sensor. Any of these stored alongside AC symptoms points directly to the pressure switch or its wiring circuit before checking anything else. Fleet technicians connected to an OBD-II platform can pull these codes in real time without waiting for the driver to report a problem.
Related article: What is OBD-II? A US Fleet Management Guide for 2026
How to test an AC pressure switch: 3 methods
Method 1: OBD-II scanner (start here for fleet vehicles)
Connect the scanner to the OBD-II port and run the AC system. Pull any stored DTCs and open the live data stream to check real-time AC pressure sensor values. Compare those readings against what a manifold gauge shows at the same moment. If the scanner and gauge disagree, the switch is sending inaccurate data to the PCM. This is the fastest diagnostic method for fleet vehicles, with no disassembly required, and most technicians already have a scanner on hand. Run this check before touching any components or wiring.
Method 2: Multimeter continuity test
Disconnect the switch electrical connector and set the multimeter to continuity mode. With the AC system off and refrigerant pressure sitting in the normal operating range, probe both terminals of the switch. A healthy switch shows continuity, meaning a closed circuit. An open reading at normal pressure means the switch has failed open and is no longer completing the circuit it is supposed to. A closed reading when pressure is clearly outside the normal range means the switch has failed in the opposite direction and is no longer responding to abnormal conditions. Either result confirms the switch needs replacing.

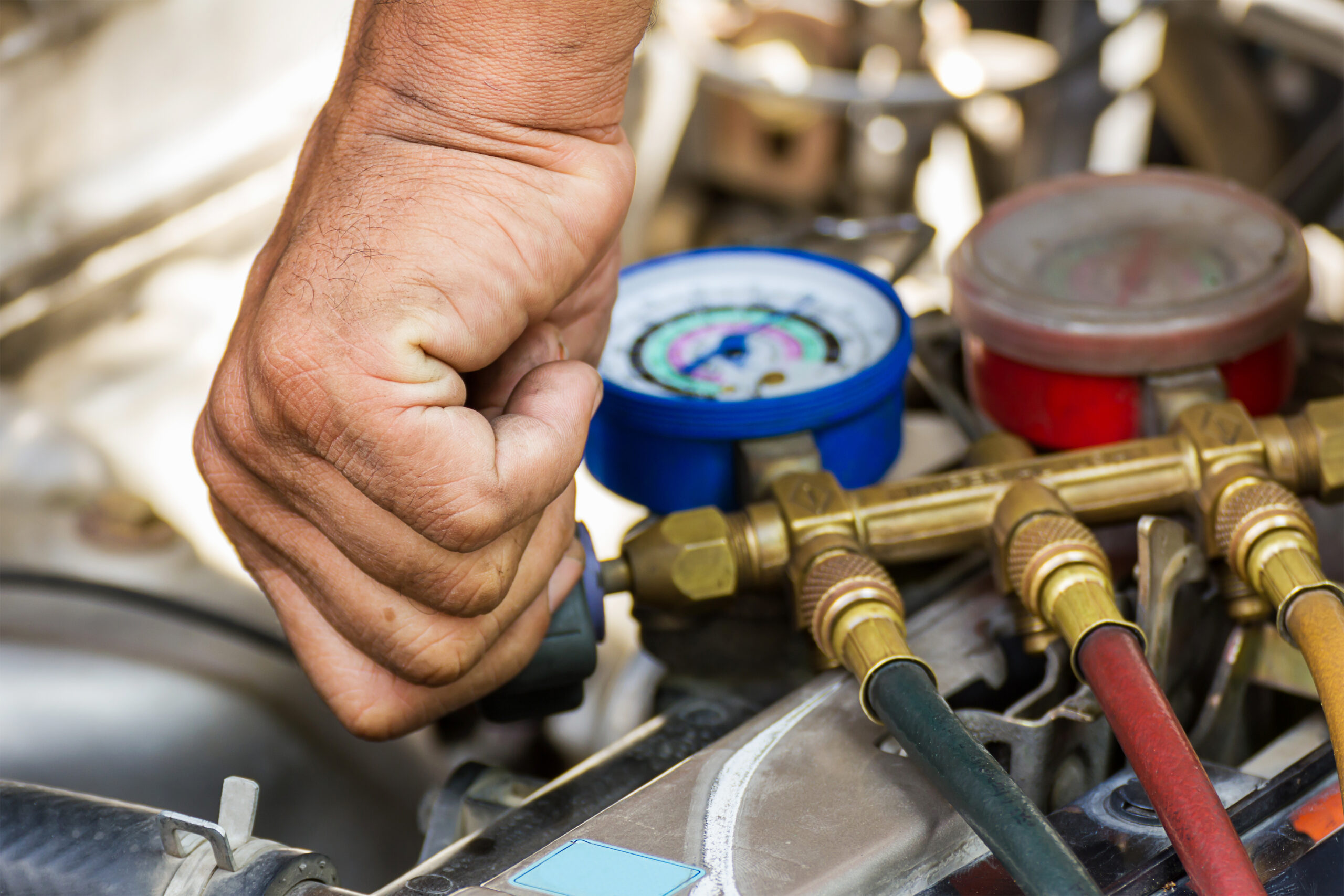

Method 3: Manifold pressure gauge
Connect the manifold gauge kit to the high-pressure side as well as to the low-pressure service port, then check the refrigerant pressure on each side. For an ordinary R-134a unit, acceptable low-pressure on the low side under operating conditions would be 25-45 PSI, while acceptable pressure on the high side would range from 150-250 PSI, depending on the ambient temperature and the engine load. If the refrigerant pressure is in the normal range for both, but the compressor is already deactivated, then the switch has malfunctioned. This method also rules out a refrigerant charge problem before pulling the switch, which avoids a second diagnostic trip if a recharge is the actual issue.
Why AC pressure switch failure in commercial fleets matter
The switch itself is an inexpensive part. At $20-$100 and 15-30 minutes of labour, it is one of the lower-cost repairs in the AC system. That is the total cost when a maintenance team catches it at the fault code stage, before anything downstream takes damage.
The math changes quickly once the compressor takes the hit. According to RepairPal, the average AC compressor replacement runs $1,004-$1,356 for most passenger vehicles. On heavy-duty commercial trucks, the figure climbs higher. For a fleet of 50 vehicles, the gap between catching a P0530 code in the OBD-II data and waiting for a driver complaint is a measurable budget variance, not a minor difference in repair timing.
There is a driver performance dimension that consumer automotive content rarely addresses. FMCSA-funded research has documented that driver performance degrades measurably at cab temperatures above 90 degrees F, with slower reaction times and reduced lane-keeping accuracy recorded in field studies. OSHA enforces heat exposure as a recognised workplace hazard under the General Duty Clause, Section 5(a)(1) of the OSH Act, placing fleet operators under a legal obligation to address known heat risks in the cab. Hours of service regulations do not bend for heat, but driver fatigue accumulates in a hot cab on the same schedule as any other fatigue, with the same effect on safety margins.
Telematics platforms that pull OBD-II data in real time surface DTCs P0530 through P0533 before any driver notices a cooling problem. A fleet with that monitoring layer catches an AC pressure switch fault while the repair is still a part swap, not after a compressor replacement and a breakdown call. Intangles’ predictive vehicle health monitoring connects each fault code to the full vehicle picture, so the maintenance team sees it in context, not in isolation, and can schedule the repair before it turns into a breakdown. That is the difference between a $50 fix and a $1,500 one, multiplied across a fleet.
Related article: Fleet Predictive Maintenance: The Complete 2026 Guide
How much does it cost to replace an AC pressure switch?
For most passenger vehicles and light commercial trucks, the switch runs $20-$100 depending on make and model. Labour is straightforward. At standard shop rates, 15-30 minutes of work adds $25-$75, putting the complete repair between $50 and $200. For heavy-duty trucks from Kenworth, Peterbilt, Freightliner, and International, aftermarket switches typically land between $20 and $45, though OEM parts and harder-to-reach mounting locations can push the total higher.
A critical procedure that is often overlooked involves evacuating the AC system for at least 30 minutes after replacing the new switch. The lack of evacuation will result in moisture remaining in the system, which will then damage the new switch and reduce its lifespan. For most car models, no discharge of the system is required when changing the switch since a self-closing Schrader valve on the refrigerant line will retain pressure while the switch is replaced. However, it is advised that you consult your vehicle’s manual before beginning the process.
The comparison worth keeping in mind: an AC compressor replacement on the same vehicle averages $1,004-$1,356. Catching the switch fault early is the repair that prevents the expensive one.
Intangles predictive maintenance catches AC faults via OBD-II
Most fleets find out about a failed AC pressure switch when the driver calls in mid-route, reporting no cooling. At that point, the compressor may already be damaged, and the $50 repair has become a $1,500 one.
Fault codes P0530 through P0533 appear in OBD-II data before the compressor fails. They surface in telematics platforms well before the driver notices any change in cab temperature. A fleet that catches a pressure switch fault at the code stage deals with a 30-minute part swap at the next scheduled stop. A fleet that finds out from a driver complaint deals with a tow, an emergency workshop slot, and a compressor invoice.
The difference is not the fault itself; it is when the maintenance team sees it. Intangles monitors AC-related DTC codes alongside 250+ vehicle parameters across the fleet in real time. When a pressure switch fault registers, the platform surfaces it in context alongside brake health, engine load, and service history, so the maintenance coordinator sees the full picture and can act before the vehicle goes down.
Discover how Intangles’ predictive vehicle health monitoring detects fleets component faults before they become breakdowns, or speak with our team to see what your vehicles are
KNOW MORE
Frequently Asked Questions
What does an AC pressure switch do?
An AC pressure switch monitors refrigerant pressure on the high side and low side of the AC system and cuts power to the compressor when pressure goes outside safe operating limits. On the low side, it stops the compressor from running without adequate lubrication when refrigerant levels drop. On the high side, it prevents overpressure from blowing hoses, damaging seals, or releasing refrigerant. The two switches together protect the compressor from the two most common failure conditions: running dry and running too hot.
What are the symptoms of a bad AC pressure switch?
The typical problems include an AC system that does not provide any cooling at all, a system that randomly cycles on and off with no set pattern, a continuously spinning radiator fan for no apparent reason, clicks and chatter in the compressor area, and a “Check Engine” warning light with Diagnostic Trouble Codes ranging from P0530 to P0533. If any of these problems are observed along with a complaint about the AC, the problem might actually lie in the switch rather than in the compressor. Fleets that utilize real-time OBD-II diagnostics can detect these trouble codes without waiting for complaints from the driver.
What is the difference between a high and a low AC pressure switch?
The low-side switch sits on the suction line between the evaporator and the compressor. It opens the circuit when pressure drops below roughly 25 PSI, which usually happens when refrigerant is low, and the compressor would otherwise run without proper lubrication. The high-side switch sits on the discharge line near the condenser. It opens when pressure exceeds the safe upper limit, typically above 400 PSI, to prevent overpressurisation. Each switch protects against a different failure mode, and both need to function properly for the compressor to operate safely. Fleet maintenance teams can also monitor high-side and low-side fault trends across vehicles through predictive monitoring platforms.
Can I drive with a bad AC pressure switch?
The vehicle drives normally, but the AC will either stop working or behave erratically, depending on how the switch has failed. If it has failed open and the compressor is not engaging, there is no immediate mechanical risk from driving. The longer-term concern is what lies underneath: if low refrigerant is the actual cause and the switch failing open is masking it, the problem compounds over time. Running the same OBD-II fault codes across multiple trips is the clearest signal that something more than a stuck switch is at play, and tracking that pattern trip by trip is what separates a one-off fault from a developing system issue.
How much does an AC pressure switch cost to replace?
Parts usually cost between $20 and $100, with labour adding another $25 to $75, so most repairs land somewhere between $50 and $200. Heavy-duty truck switches from aftermarket suppliers are often on the lower end of that range. By comparison, replacing an AC compressor on the same vehicle averages $1,004 to $1,356. Early fault detection through vehicle health monitoring systems can help identify switch issues before they lead to larger AC failures.
